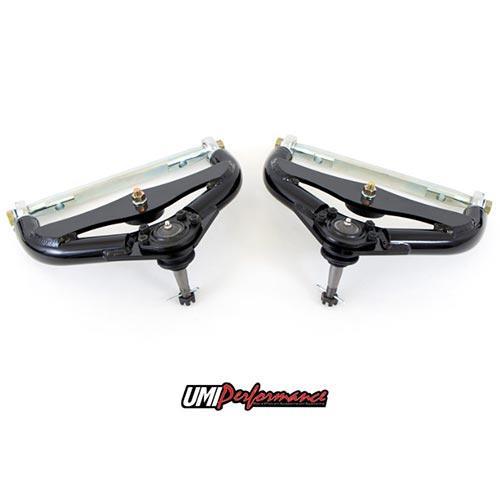

Adjustable tubular upper control arms (pair) by UMI are designed to excel in all forms of racing. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance.
CNC laser cut ball joint mounting pad.
0.120” wall thickness 1.250” diameter DOM tubing.
TIG welded for superior strength and clean looks.
4130 chromoly cross shafts, CNC machined & zinc plated.
Polyurethane bump stops included.
Travel limiting bolt compatible.
Direct bolt-in compatible with factory or UMI lower a-arm.
May also work in conjunction with other lower a-arms and/or spindles (contact us to discuss).
Package includes recommended alignment specs and detailed installation instructions.
Note: Standard ball joint will usually require the use of taller spindles.
1980-1988 Monte Carlo, El Camino & Malibu front headlight conversion kit. This k...
Don't reuse old rusty bolts when installing aftermarket control arms when you ca...
Part #DM91860 UPPER
