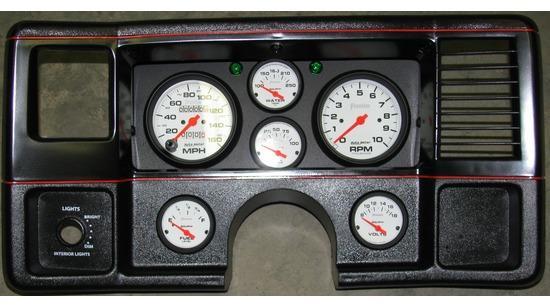

82-88 2nd Design Shadowbox, Gauges & Faceplate (w/o housing): Autometer Gauges w/ White Faces

This 1982-1988 Monte Carlo, El Camino, & Malibu 2nd design 6-gauge cluster includes the faceplate, Auto Meter white face gauges, wiring, lights (will fit in 82-85 cars with new headlight switch knob and bracket). All gauges are pre-wired but you will need to splice the included gauge harness into your original dash harness using the included instructions.
These gauges are easier to read and are more accurate than the factory units.
Gauges included: 160mph speedometer, odometer, factory style 90ohm fuel level gauge, oil pressure, water temperature, voltmeter, 10000rpm tachometer. New speedo cable, oil pressure and temperature senders included. Green LED turn signals installed and a blue LED bright beam indicator and red LED brake indicator included. You will need to reuse your existing gauge pod/box, A/C duct & vent, light switch and knob (factory pod/box will need to be modified for clearance of the new gauges).
Please contact us to state your choice of original interior colors.

This part is made to order. Please allow 2-3 weeks for production.

Part # DM00510 AUTOWHITE Price: $1029.95 Qty:
Add To Cart
